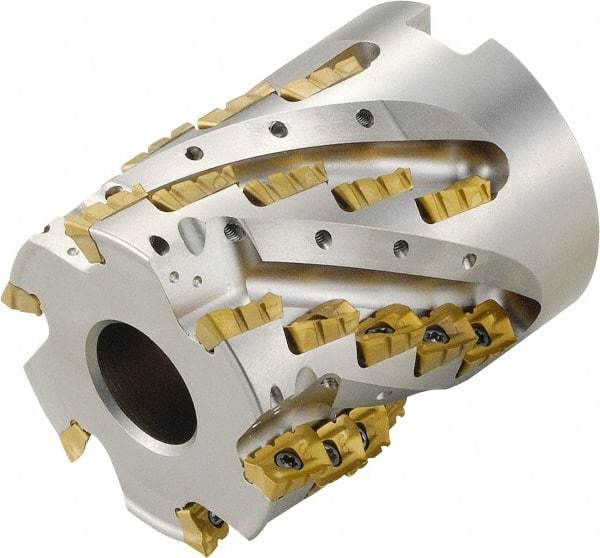

Kyocera - 24 Inserts, 80mm Cut Diam, 18mm Arbor Diam, 59mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 85mm High, BDMT 1704 Insert Compatibility
Item #: 50422708
Brand: Kyocera
Model #: 8828745
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 18.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.7087 |
| Lead Angle | 90 |
| Overall Height (mm) | 85.00 |
| Overall Height (Decimal Inch) | 3.3465 |
| Insert Compatibility | BDMT 1704 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 59.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.3228 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 24 |
| Insert Holding Method | Screw |
| Cutter Style | MECH |
| Number of Flutes | 6 |
| Cutting Rake Angle | -7 |
| Rake | Negative |
| Keyway Width (mm) | 13.00 |
| Keyway Width (Decimal Inch) | 0.5118 |
| Keyway Depth (Decimal Inch) | 0.314961 |
| Keyway Depth (mm) | 8 |
| ISO Number | MECH080R-17-4-6T |
| Complete Insert Compatibility | BDMT 170408ER-N3; BDMT 170408ER-N4 |
