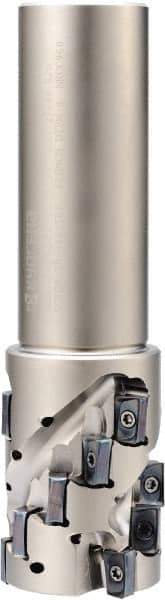

Kyocera - 20 Inserts, 100mm Cut Diam, 40mm Arbor Diam, 53mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 74mm High, LOMU 1505..ER-GH, LOMU 1505..ER-GM & LOMU 1505..ER-SM Insert Compatibility, Series M-Four
Item #: 50422823
Brand: Kyocera
Model #: 8838757
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5748 |
| Overall Height (mm) | 74.00 |
| Overall Height (Decimal Inch) | 2.9134 |
| Insert Compatibility | LOMU 1505..ER-GH; LOMU 1505..ER-GM; LOMU 1505..ER-SM |
| Series | M-Four |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 53.00 |
| Maximum Depth of Cut (Decimal Inch) | 2.0866 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 20 |
| Insert Holding Method | Screw |
| Cutter Style | MEWH |
| Number of Flutes | 5 |
| Cutting Rake Angle | -20 |
| Rake | Negative |
| Keyway Width (mm) | 16.40 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Keyway Depth (Decimal Inch) | 0.354331 |
| Keyway Depth (mm) | 9 |
| ISO Number | MEWH100R-15-4-5T-M |
| Complete Insert Compatibility | LOMU 150504ER-GM; LOMU 150508ER-GH; LOMU 150508ER-GM; LOMU 150508ER-SM; LOMU 150510ER-GM; LOMU 150512ER-GM; LOMU 150516ER-GM; LOMU 150520ER-GM |
