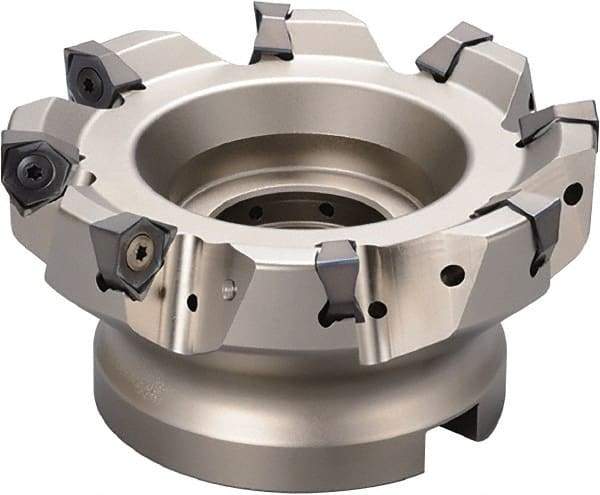

Kyocera - 8 Inserts, 125mm Cut Diam, 38.1mm Arbor Diam, 8mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 63mm High, WNMU 0806 Insert Compatibility, Through Coolant, Series M-Six
Item #: 50423136
Brand: Kyocera
Model #: 8835700
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 125.00 |
| Cutting Diameter (Decimal Inch) | 4.9213 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 0 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | WNMU 0806 |
| Series | M-Six |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | MFWN |
| Number of Flutes | 8 |
| Cutting Rake Angle | -8 |
| Rake | Negative |
| Keyway Width (mm) | 15.90 |
| Keyway Width (Decimal Inch) | 0.6260 |
| Keyway Depth (Decimal Inch) | 0.393701 |
| Keyway Depth (mm) | 10 |
| Pitch | Fine |
| ISO Number | MFWN90125R-8T |
| Complete Insert Compatibility | WNEU 080608EN-GL; WNMU 080608EN-GH; WNMU 080608EN-GM; WNMU 080608EN-SM |
