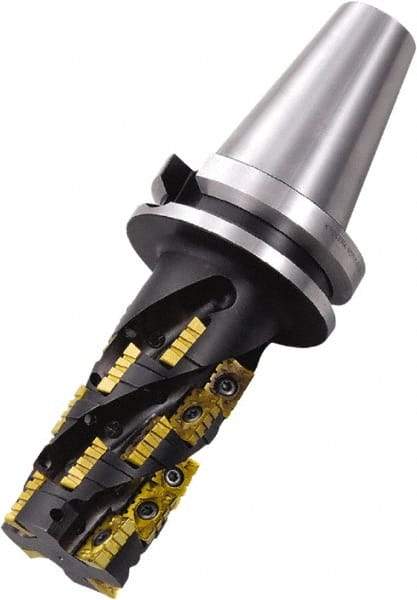

Kyocera - 32 Inserts, 160mm Cut Diam, 2" Arbor Diam, 90mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 115mm High, APMT 2506 Insert Compatibility
Item #: 50423490
Brand: Kyocera
Model #: 8820954
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 160.00 |
| Cutting Diameter (Decimal Inch) | 6.2992 |
| Arbor Hole Diameter (Decimal Inch) | 2.0000 |
| Lead Angle | 90 |
| Overall Height (mm) | 115.00 |
| Overall Height (Decimal Inch) | 4.5276 |
| Insert Compatibility | APMT 2506 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 90.00 |
| Maximum Depth of Cut (Decimal Inch) | 3.5433 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 32 |
| Insert Holding Method | Screw |
| Cutter Style | MSR |
| Number of Flutes | 8 |
| Cutting Rake Angle | -5 |
| Rake | Negative |
| Keyway Width (mm) | 19.00 |
| Keyway Width (Decimal Inch) | 0.7480 |
| Keyway Depth (Decimal Inch) | 0.433071 |
| Keyway Depth (mm) | 11 |
| ISO Number | MSR160R-4 |
| Complete Insert Compatibility | APMT 250608ER-NB3; APMT 250608ER-NB4; APMT 250616EL-NB3; APMT 250616EL-NB4; APMT 250616ER-NB3; APMT 250616ER-NB3P; APMT 250616ER-NB4; APMT 250616ER-NB4P; APMT 250640ER-NB3; APMT 250640ER-NB4 |
