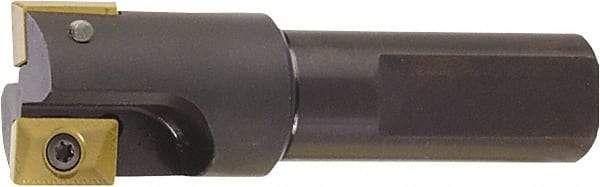

Kyocera - 1" Cut Diam, 0.6" Max Depth of Cut, 1" Shank Diam, 5.78" OAL, Indexable Square Shoulder End Mill - XPMT 15T3 Inserts, Whistle Notch Shank, 90° Lead Angle
Item #: 50423813
Brand: Kyocera
Model #: 8601008
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.40 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (Decimal Inch) | 5.7800 |
| Lead Angle | 90 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.60 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | EM |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 3.5000 |
| Weldon Flat | No |
| Insert Compatibility | XPMT 15T3 |
| Shank Length (Decimal Inch) | 2.2800 |
