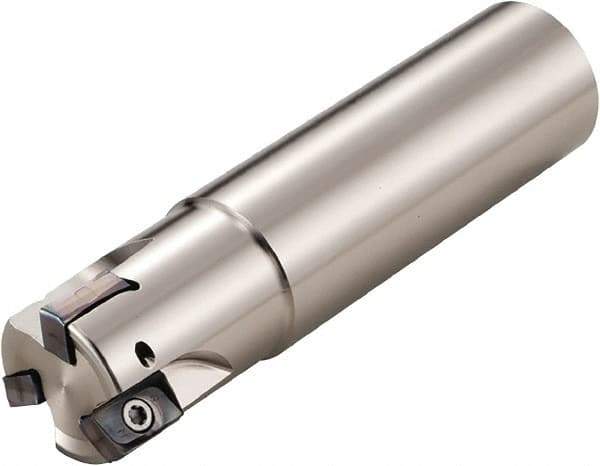

Kyocera - 25mm Cut Diam, 10mm Max Depth of Cut, 25mm Shank Diam, 120mm OAL, Indexable Square Shoulder End Mill - LOMU 1004..ER-GH, LOMU 1004..ER-GM, LOMU 1004..ER-SM Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series M-Four
Item #: 50424647
Brand: Kyocera
Model #: 8837817
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9843 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Overall Length/Projection (mm) | 120.00 |
| Overall Length/Projection (Decimal Inch) | 4.7244 |
| Lead Angle | 90 |
| Series | M-Four |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.393701 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | MEW |
| Number of Flutes | 2 |
| Head Length (mm) | 32.00 |
| Head Length (Decimal Inch) | 1.2598 |
| Weldon Flat | No |
| Insert Compatibility | LOMU 1004..ER-GH; LOMU 1004..ER-GM; LOMU 1004..ER-SM |
| Shank Length (Decimal Inch) | 3.4646 |
| Shank Length (mm) | 88.00 |
| Maximum RPM | 37500 |
