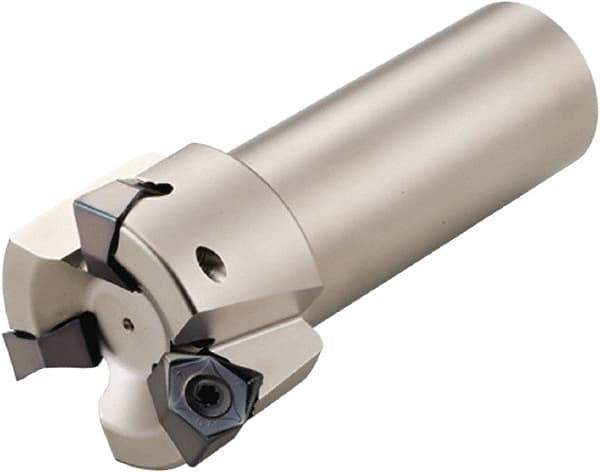

Kyocera - 3" Cut Diam, 0.315" Max Depth of Cut, 1-1/4" Shank Diam, 3.6" OAL, Indexable Square Shoulder End Mill - WNEU 080608EN-GL, WNMU 080608EN-GH, WNMU 080608EN-GM, WNMU 080608EN-SM Inserts, Weldon Shank, 90° Lead Angle, Through Coolant
Item #: 50424969
Brand: Kyocera
Model #: 8606147
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 76.20 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Cutting Diameter (Inch) | 3 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 3.6000 |
| Lead Angle | 90 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | MFWN |
| Number of Flutes | 5 |
| Head Length (Decimal Inch) | 1.1800 |
| Weldon Flat | No |
| Insert Compatibility | WNEU 080608EN-GL; WNMU 080608EN-GH; WNMU 080608EN-GM; WNMU 080608EN-SM |
| Shank Length (Decimal Inch) | 2.4200 |
