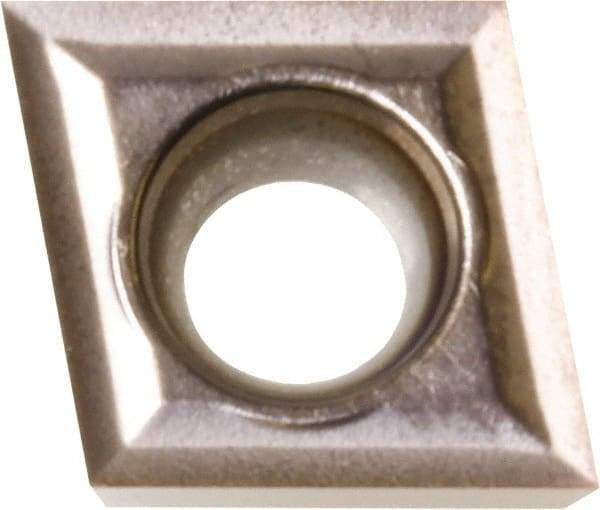

Kyocera - CCGT325013 Grade PR1225 Carbide Turning Insert - Megacoat Finish, 80° Diamond, 3/8" Inscr Circle, 5/32" Thick, 0.0508mm Corner Radius
Item #: 50426345
Brand: Kyocera
Model #: 8831803
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCGT |
| Insert Size | 325013 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Thickness (mm) | 3.97 |
| Corner Radius (mm) | 0.0508 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Manufacturer's Grade | PR1225 |
| Coating | Megacoat |
| Material Grade | Micrograin |
| Hole Diameter (mm) | 4.39 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| ISO Number | CCGT09T3005MF |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | CCGT325013MF PR1225 |
| Primary Workpiece Material | M |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Cutting Edge Style | Sharp |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
