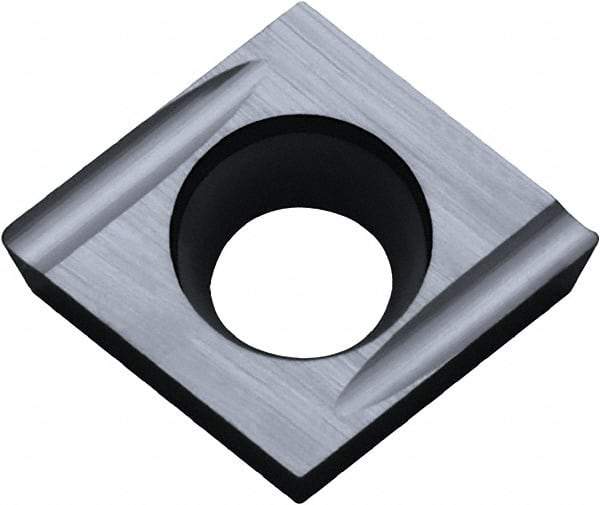

Kyocera - CCET21.50.2 USF Grade PR1225 Carbide Turning Insert - Megacoat Finish, 80° Diamond, 1/4" Inscr Circle, 3/32" Thick, 0.004" Corner Radius
Item #: 50427863
Brand: Kyocera
Model #: 8831756
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCET |
| Insert Size | 21.50.2 |
| Material | Carbide |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Thickness (mm) | 2.38 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Manufacturer's Grade | PR1225 |
| Coating | Megacoat |
| Material Grade | Micrograin |
| Chip Breaker | USF |
| Hole Diameter (mm) | 2.79 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| ISO Number | CCET060201ML-USF |
| Rake | Positive |
| Rake Angle | 30 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | CCET21502MFLUSF PR1225 |
| Primary Workpiece Material | M |
| Included Angle | 80 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Insert Holding Method | Screw |
| Cutting Edge Style | Sharp |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
