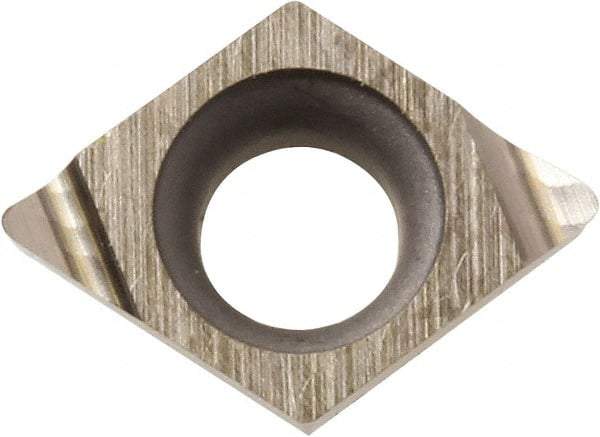

Kyocera - JCET11091 FSF Grade PR930 Carbide Turning Insert - TiCN Finish, 70° Diamond, 3.5052mm Inscr Circle, 1.397mm Thick, 1/64" Corner Radius
Item #: 50428770
Brand: Kyocera
Model #: 8811926
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | JCET |
| Insert Size | 11091 |
| Material | Carbide |
| Inscribed Circle (mm) | 3.51 |
| Inscribed Circle (Decimal Inch) | 0.1380 |
| Thickness (Decimal Inch) | 0.0550 |
| Thickness (mm) | 1.40 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | PR930 |
| Coating | TiCN |
| Material Grade | Super Micrograin |
| Chip Breaker | FSF |
| Hole Diameter (mm) | 1.91 |
| Hole Diameter (Decimal Inch) | 0.0750 |
| Rake | Positive |
| Rake Angle | 15 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | JCET11091LFSF PR930 |
| Primary Workpiece Material | P |
| Included Angle | 70 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
