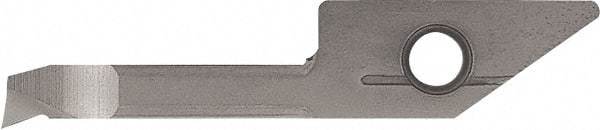

Kyocera - 1mm Min Bore Diam, 3mm Max Bore Depth, Micro Boring Bar - 0.001969" Corner Radius, Right Hand Cut, Solid Carbide
Item #: 50429414
Brand: Kyocera
Model #: 8815899
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, nonferrous metals and other tough to machine materials.
Micro boring inserts offer two edges for stable cutting at low speeds. They offer high wear resistance and anti-chipping performance for cast iron and non-ferrous metals.
| Product Specifications | |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.0394 |
| Minimum Bore Diameter (mm) | 1.00 |
| Maximum Bore Depth (Decimal Inch) | 0.1181 |
| Maximum Bore Depth (mm) | 3.00 |
| Material | Solid Carbide |
| Material Grade | Super Micrograin |
| Boring Bar Type | Micro Boring |
| Overall Length (Decimal Inch) | 1.0433 |
| Overall Length (mm) | 26.50 |
| Cutting Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.001969 |
| Corner Radius (mm) | 0.05 |
| Bar End Angle | 10 |
| Manufacturer Grade | PR930 |
