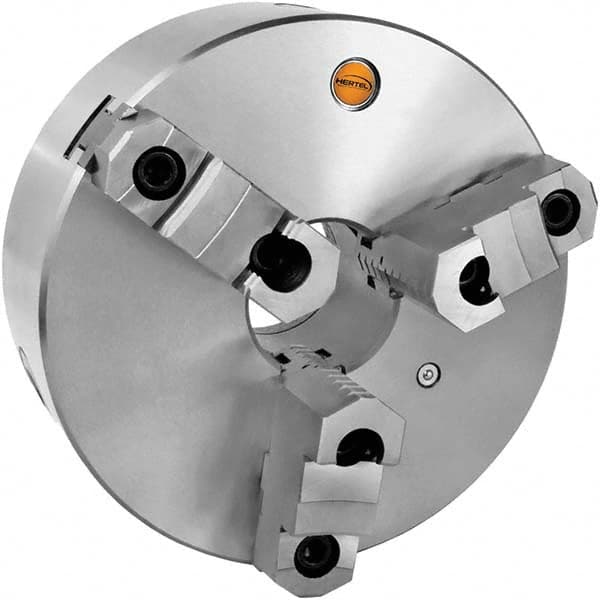

Hertel - Manual Lathe Chucks Chuck Type: Self-Centering Nominal Chuck Size: 8
Item #: 97018451
Brand: Hertel
Model #:
Features and Benefits
Self-centering scroll chucks are designed with jaws on a scroll which open and close with a wrench that is turned on a pinion. They accurately self-center on the workpiece as the jaws close.
Cast iron also called semi-steel is the industry standard for chuck body material.
Product Specifications
Manual Lathe Chucks; Chuck Type: Self-Centering ; Nominal Chuck Size: 8 ; Number of Jaws: 3 ; Mount: Plain Back ; Through-Hole Diameter (Decimal Inch): 2.1654 ; Body Material: Cast Iron (Semi-Steel)
| Chuck Type | Self-Centering |
| Nominal Chuck Size | 8 |
| Number of Jaws | 3 |
| Mount | Plain Back |
| Through-Hole Diameter (Decimal Inch) | 2.1654 |
| Body Material | Cast Iron (Semi-Steel) |
| Reversible Jaws | Reversible Jaws |
| Chuck Diameter (Inch) | 8 |
| Minimum Jaw Capacity (mm) | 8.00 |
| Minimum Jaw Capacity (Inch) | 5/16 |
| Maximum Jaw Capacity (Inch) | 7-7/8 |
| Jaw Height (Inch) | 1-53/64 |
| Adjustable | No |
| Axial Runout (Decimal Inch) | 0.0010 |
| Radial Runout (Decimal Inch) | 0.0016 |
| Body Length (Inch) | 2-61/64 |
| Maximum RPM | 2500 |
