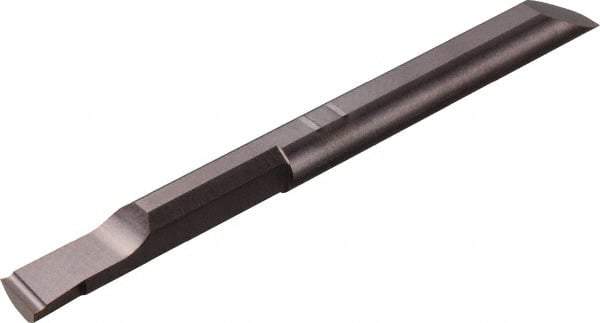

Kyocera - 5mm Min Bore Diam, 25mm Max Bore Depth, 5mm Shank Diam, Boring Bar - 0.00315" Corner Radius, Right Hand Cut, Solid Carbide
Item #: 50444181
Brand: Kyocera
Model #: 8836632
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, nonferrous metals and other tough to machine materials.
Boring bars are used to enlarge or finish the inside diameter of a workpiece.
| Product Specifications | |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.1969 |
| Minimum Bore Diameter (mm) | 5.00 |
| Maximum Bore Depth (Decimal Inch) | 0.9843 |
| Maximum Bore Depth (mm) | 25.00 |
| Material | Solid Carbide |
| Material Grade | Micrograin |
| Boring Bar Type | Boring |
| Shank Diameter (Decimal Inch) | 0.1969 |
| Shank Diameter (mm) | 5.0000 |
| Overall Length (Decimal Inch) | 2.2874 |
| Overall Length (mm) | 58.10 |
| Cutting Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.003150 |
| Corner Radius (mm) | 0.08 |
| Bar End Angle | 5 |
| Manufacturer Grade | PR1225 |
