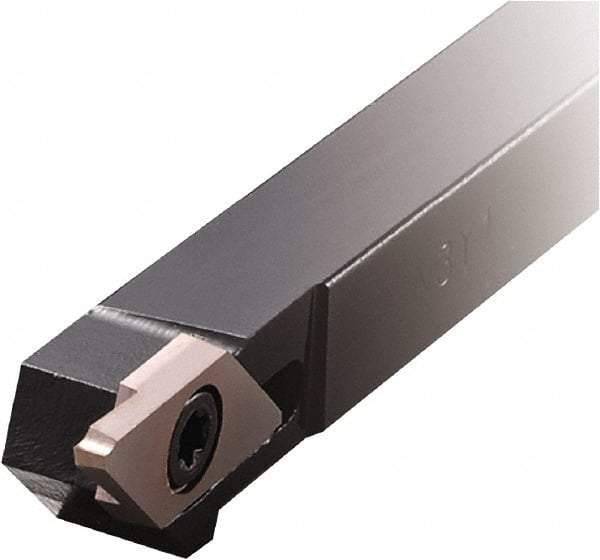

Kyocera - External Thread, Right Hand Cut, 12mm Shank Width x 12mm Shank Height Indexable Threading Toolholder - 85mm OAL, TKFT 12R... Insert Compatibility, KTKFR Toolholder, Series KTKF
Item #: 50446517
Brand: Kyocera
Model #: 8820912
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 12.00 |
| Shank Width/Diameter (Decimal Inch) | 0.4724 |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Overall Length (Decimal Inch) | 3.3465 |
| Overall Length (mm) | 85.00 |
| Insert Compatibility | TKFT 12R... |
| Series | KTKF |
| Toolholder Style | KTKFR |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 12.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Pitch Range | 0.2-1.5 |
