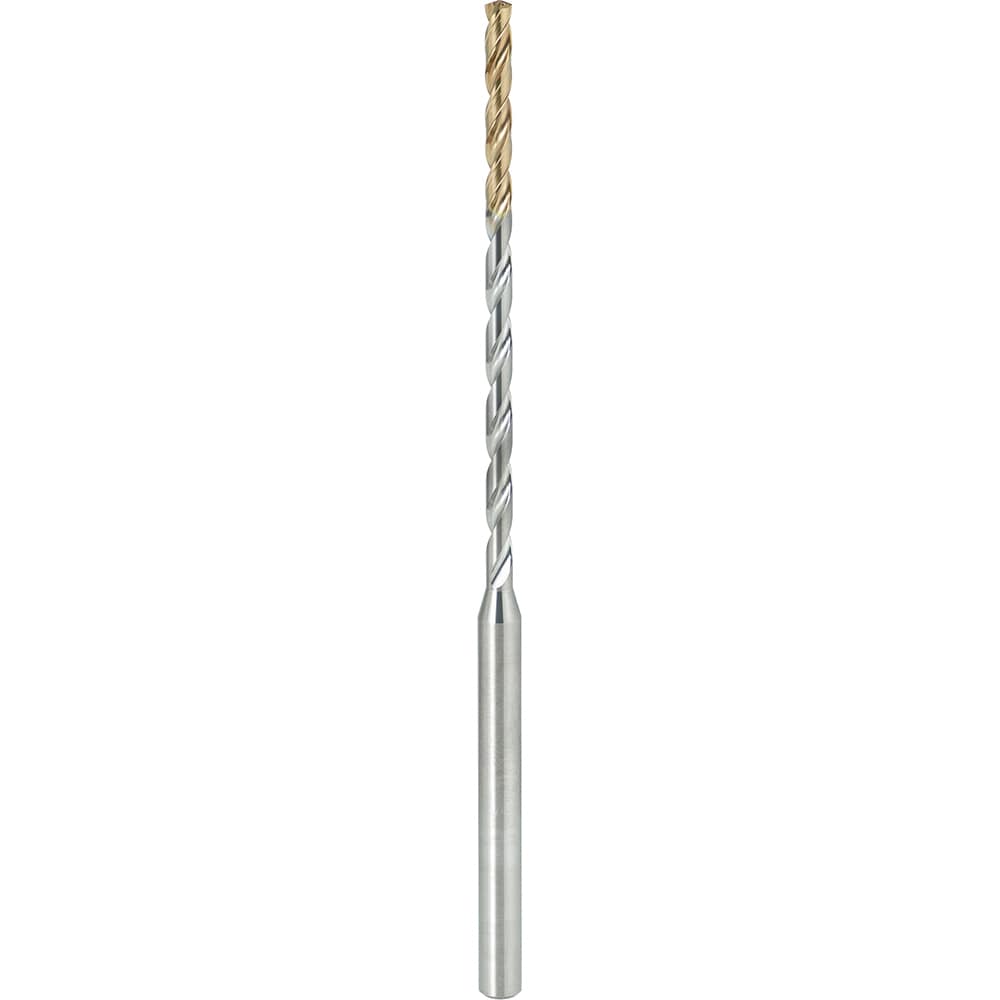

Micro Drill Bit: 2.70 mm Dia, (0.1063"), 139 deg, Solid Carbide
Item #: 04941944
Brand: Mitsubishi
Model #: 10634929
Product Specifications
| Drill Bit Size (mm) | 2.70 |
| Drill Bit Size (Decimal Inch) | 0.1063 |
| Tool Material | Solid Carbide |
| Flute Length (Decimal Inch) | 2.4646 |
| Flute Length (mm) | 62.60 |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Drill Point Angle | 139 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 54.50 |
| Maximum Drilling Depth (Decimal Inch) | 2.1457 |
| Number Of Flutes | 2 |
| Series | DVAS |
| Overall Length (Decimal Inch) | 4.2126 |
| Overall Length (mm) | 107.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | X-Thinning |
| Tool Application | Very Small Hole Drilling; Deep Hole Drilling |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Aluminum; Cast Iron; Brass; Carbon Steel; Titanium; Superalloys & Titanium; Aluminum Alloy; Steel; Copper; Titanium Alloy; Hardened Steel |
| Secondary Workpiece Material Code | P; S; K; M; N |
| Standards | ISO |
| Shank Diameter (Decimal Inch) | 0.1575 |
| Shank Diameter (mm) | 4.00 |
| Shank Length (Decimal Inch) | 1.6535 |
| Shank Length (mm) | 42.00 |
| Flute By Diameter Ratio | 20xD |
| UNSPSC Code | 23241600 |
