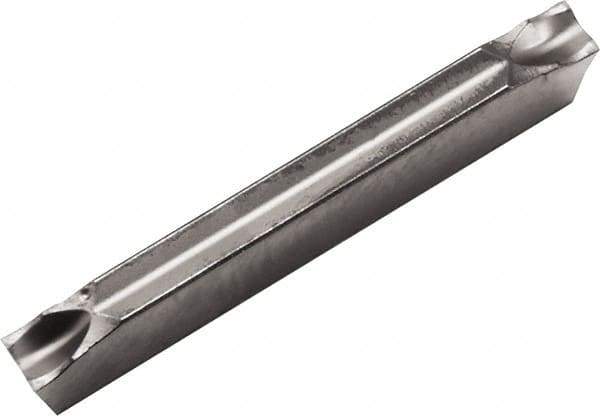

Kyocera - 1316GDM PF Grade PR1215, 1.3mm Cutting Width Carbide Grooving Insert - Neutral, 0.15mm Corner Radius, Megacoat Finish
Item #: 50468982
Brand: Kyocera
Model #: 8838400
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GDM |
| Insert Size | 1316 |
| Material | Carbide |
| Cutting Width (mm) | 1.30 |
| Cutting Width (Decimal Inch) | 0.0512 |
| Material Grade | Micrograin |
| Manufacturer's Grade | PR1215 |
| Coating | Megacoat |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 3.70 |
| Cutting Height (Decimal Inch) | 0.1457 |
| Chipbreaker | PF |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off |
| Corner Radius (mm) | 0.15 |
| Corner Radius (Decimal Inch) | 0.005906 |
| Coating Process | PVD |
| Overall Length (mm) | 16.00 |
| Overall Length (Decimal Inch) | 0.6299 |
| Series | GD |
| Manufacturers Catalog Number | GDM1316N-015PF |
| Insert Thickness (Decimal Inch) | 0.0394 |
| Insert Thickness (mm) | 1 |
