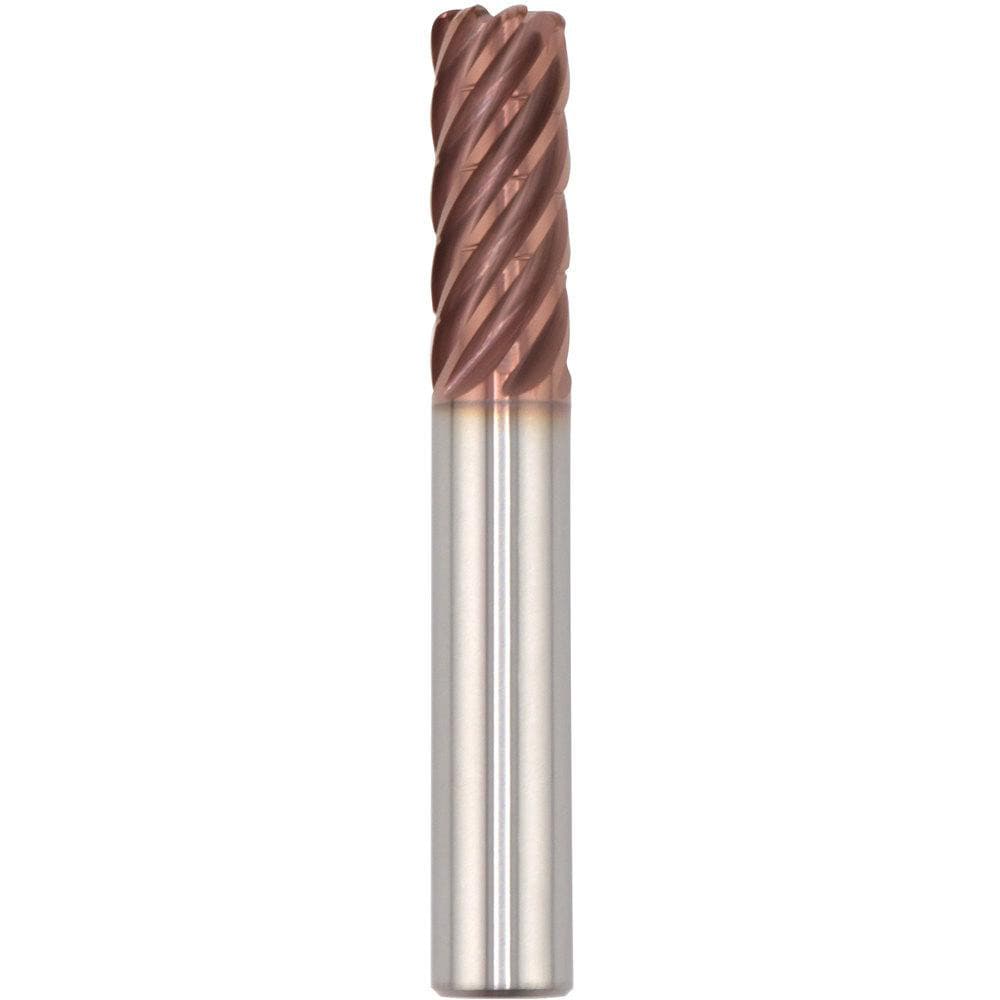

Corner Radius End Mill: 1/2" Dia, 1-1/2" LOC, 0.0600" Radius, 7 Flute, Solid Carbide
Item #: 86148806
Brand: SGS
Model #: 77363
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Mill Diameter (mm) | 12.70 |
| Number Of Flutes | 7 |
| Length of Cut (mm) | 38.10 |
| Length of Cut (Inch) | 1-1/2 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | Yes |
| Coating/Finish | Ti-NAMITE-M |
| Overall Length (Inch) | 3-1/2 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0600 |
| Variable Index | No |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 1.52 |
| Overall Length (mm) | 88.90 |
| Coolant Through | Yes |
| Overall Length (Decimal Inch) | 3.5000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.5000 |
| Length Type | Long |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (mm) | 12.70 |
| Corner Radius Tolerance | +0.0000/-0.0020" |
| Mill Diameter Tolerance | +0.0000/-0.0020" |
| Shank Diameter Tolerance | +0.00000/-0.00043" |
| Primary Workpiece Material | Stainless Steel; Cast Iron; High Temperature Alloy; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; K; M |
| Secondary Workpiece Material | Hard Material |
| Secondary Workpiece Material Code | H |
| Material Grade | Micrograin |
| Series | 77CR |
| Manufacturers Catalog Number | 77363 |
| Country of Origin | UNITED STATES |
