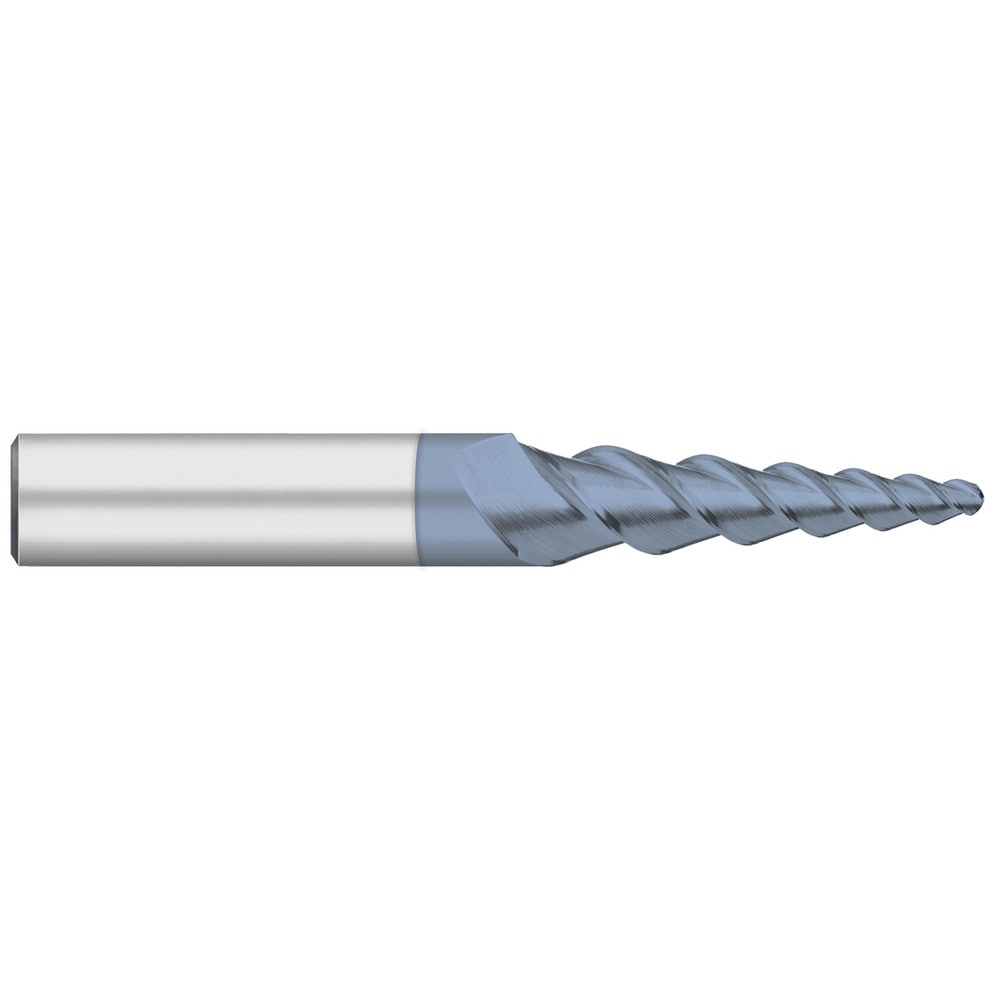

Ball End Mill: 1/8" Dia, 3/4" LOC, 3 Flute, Solid Carbide
Item #: 80059736
Brand: Titan USA
Model #: TC85058
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1250 |
| Length of Cut (Inch) | 3/4 |
| End Mill Material | Solid Carbide |
| Flute Type | Spiral |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Centercutting | Yes |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 1/4 |
| Nose Radius (Decimal Inch) | 0.0625 |
| Helix Angle | 30 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Flute Direction | Right Hand |
| Series | Carbide - 3 Flute - Ball - 30° Helix - Tapered, Milling |
| Coating Classification | PVD |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| Coolant Through | No |
| Coating/Finish | AlTiN |
| Number Of Flutes | 3 |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
