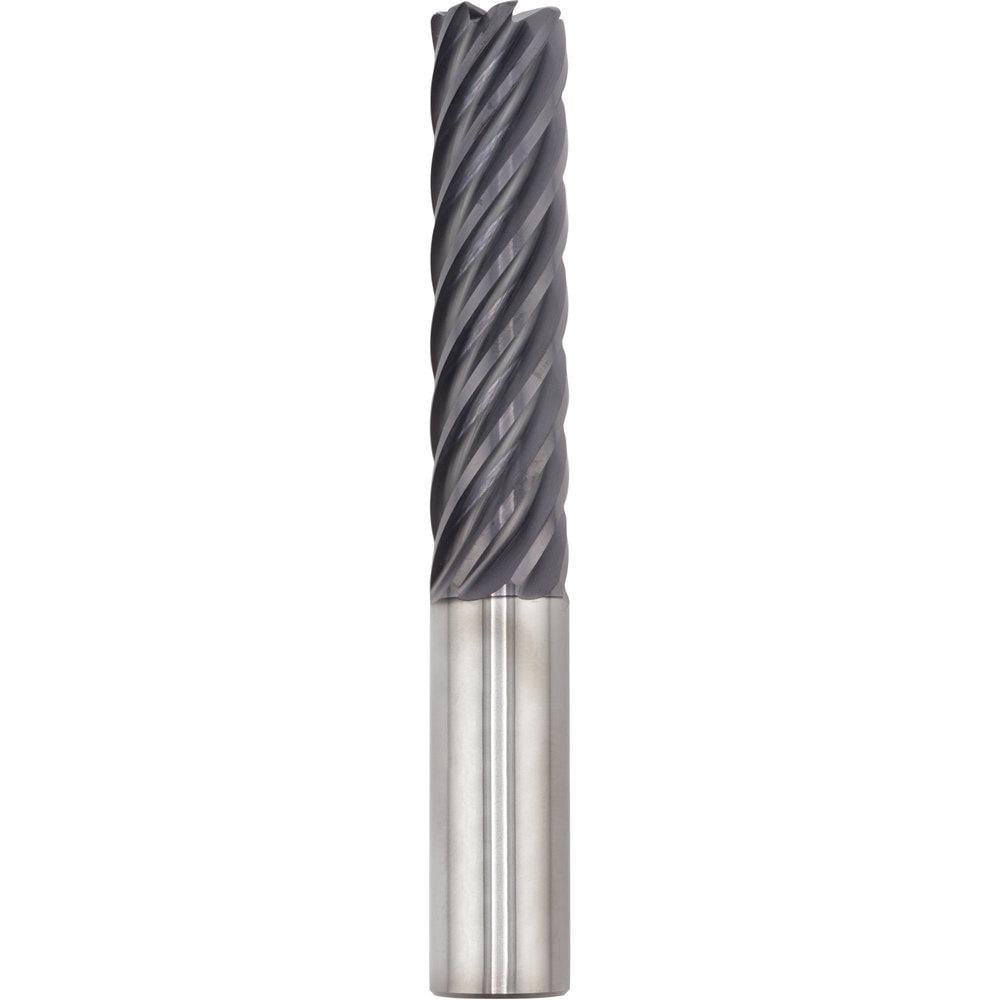

Corner Radius End Mill: 1" Dia, 3" LOC, 0.0300" Radius, 7 Flute, Solid Carbide
Item #: 86149887
Brand: SGS
Model #: 77480
Product Specifications
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Mill Diameter (mm) | 25.40 |
| Number Of Flutes | 7 |
| Length of Cut (mm) | 76.20 |
| Length of Cut (Inch) | 3 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| Coating/Finish | Ti-NAMITE-A |
| Overall Length (Inch) | 6 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Variable Index | No |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.76 |
| Overall Length (mm) | 152.40 |
| Coolant Through | Yes |
| Overall Length (Decimal Inch) | 6.0000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 3.0000 |
| Length Type | Long |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (mm) | 25.40 |
| Corner Radius Tolerance | +0.0000/-0.0020" |
| Mill Diameter Tolerance | +0.0000/-0.0020" |
| Shank Diameter Tolerance | +0.00000/-0.00051" |
| Primary Workpiece Material | Stainless Steel; Cast Iron; High Temperature Alloy; Steel |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | P; S; K; M |
| Secondary Workpiece Material | Hard Material |
| Secondary Workpiece Material Code | H |
| Material Grade | Micrograin |
| Series | 77CR |
| Manufacturers Catalog Number | 77480 |
| Country of Origin | UNITED STATES |
