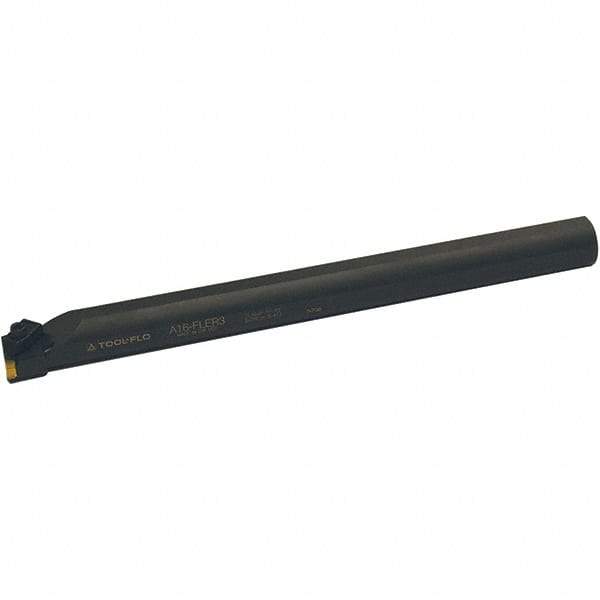

Tool-Flo - Internal Thread, Right Hand Cut, 16mm Shank Width x 16mm Shank Height Indexable Threading Toolholder - 250mm OAL, FL 2L Insert Compatibility, A16 Toolholder, Series Flo-Lock
Item #: 50861558
Brand: Tool-Flo
Model #: 96441608
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Overall Length (Decimal Inch) | 9.8425 |
| Overall Length (mm) | 250.00 |
| Insert Compatibility | FL 2L |
| Series | Flo-Lock |
| Toolholder Style | A16 |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Threading |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 12.65 |
| Center to Cutting Edge (Decimal Inch) | 0.4980 |
| Minimum Bore Diameter (Decimal Inch) | 1.0000 |
