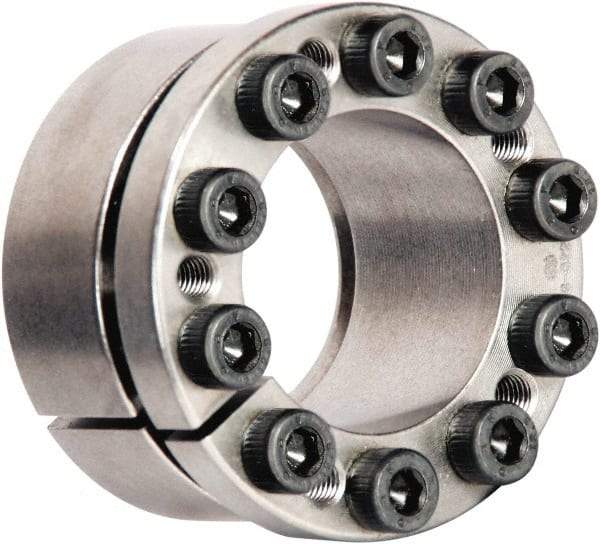

Climax Metal Products - M5 Thread, 24mm Bore Diam, 1-11/16" OD, Shaft Locking Device - 8 Screws, 7,037 Lb Axial Load, 1-7/8" OAW, 0.591" Thrust Ring Width, 3,324 Ft/Lb Max Torque
Item #: 51320919
Brand: Climax Metal Products
Model #: C193M-24
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Size | M5 |
| Bore Diameter (mm) | 24.000 |
| Outside Diameter (Decimal Inch) | 1.6870 |
| Thrust Ring Width (Decimal Inch) | 0.591 |
| Overall Width (Decimal Inch) | 1.8750 |
| Axial Load Lbs (Pounds) | 7037 |
| Maximum Torque (Ft/Lb) | 3324 |
| Number of Screws | 8.000 |
| Contact Pressure on Hub (psi) | 18715.000 |
| Contact Pressure on Shaft (psi) | 33424.000 |
| Screw Seating Torque (In/Lb) | 1068.000 |
