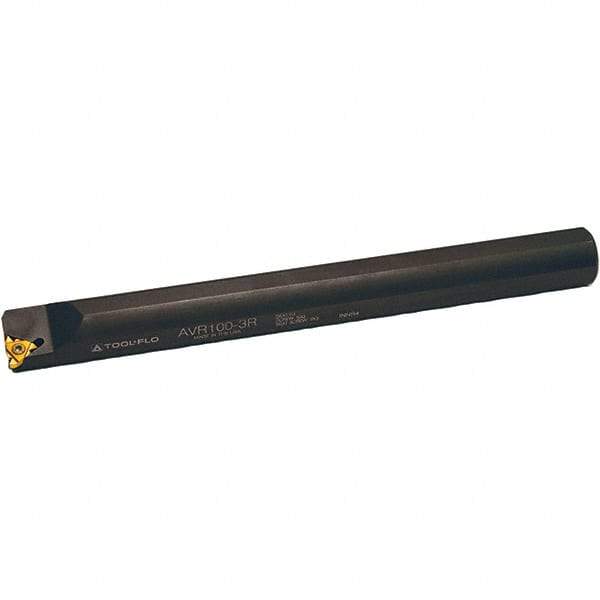

Tool-Flo - Internal Thread, Right Hand Cut, 1-1/2" Shank Width x 1-1/2" Shank Height Indexable Threading Toolholder - 12" OAL, 22NR Insert Compatibility, AVR Toolholder, Series Laydown
Item #: 51503498
Brand: Tool-Flo
Model #: 918072401
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 1.5000 |
| Shank Height (Decimal Inch) | 1.5000 |
| Overall Length (Decimal Inch) | 12.0000 |
| Overall Length (Inch) | 12 |
| Insert Compatibility | 22NR |
| Series | Laydown |
| Toolholder Style | AVR |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Center to Cutting Edge (Decimal Inch) | 0.9800 |
| Head Length (Decimal Inch) | 3.0000 |
| Minimum Bore Diameter (Decimal Inch) | 1.8000 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
