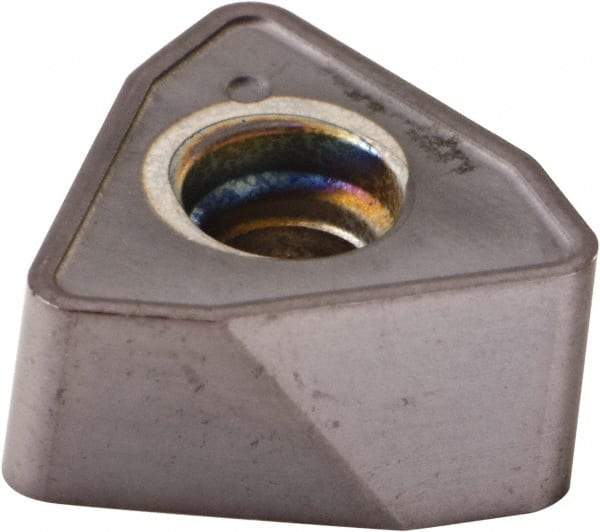

Kennametal - WOEJ090512 Grade KC522M Carbide Milling Insert - AlTiN Finish, 0.215" Thick, 0.351" Inscribed Circle, 1.22mm Corner Radius
Item #: 51551000
Brand: Kennametal
Model #: 4034878
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WOEJ |
| Insert Size | 090512 |
| Material | Carbide |
| Manufacturer's Grade | KC522M |
| Coating | AlTiN |
| Length (Decimal Inch) | 0.2900 |
| Inscribed Circle (Decimal Inch) | 0.3510 |
| Thickness (Decimal Inch) | 0.2150 |
| Corner Radius (Decimal Inch) | 0.0480 |
| Corner Radius (mm) | 1.22 |
| Hole Diameter (mm) | 3.56 |
| Hole Diameter (Decimal Inch) | 0.1402 |
| Relief Angle | 0.000 |
| Rake Angle | 15 |
| Rake | Positive |
| Coating Process | PVD |
| Included Angle | 80 |
| Shape | Trigon |
| Insert Hand | Right Hand |
| Cutting Edge Style | Honed T-Land |
| ISO Number | WOEJ090512SRHD |
