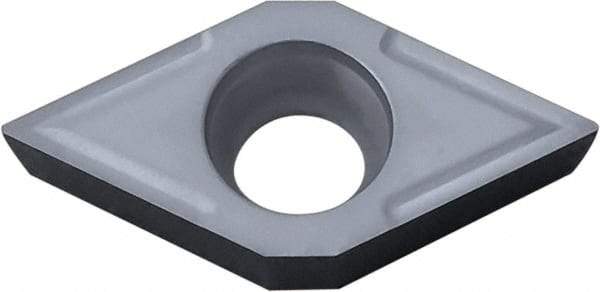

Kyocera - DCGT21502 Grade TC40 Cermet Turning Insert - 55° Diamond, 1/4" Inscr Circle, 0.093" Thick, 0.0039" Corner Radius
Item #: 51628949
Brand: Kyocera
Model #: 8849876
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | DCGT |
| Insert Size | 21502 |
| Material | Cermet |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.0930 |
| Corner Radius (Decimal Inch) | 0.0039 |
| Manufacturer's Grade | TC40 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| ISO Number | DCGT21502TC40 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | Uncoated |
| Primary Workpiece Material | P |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Shape | Diamond |
