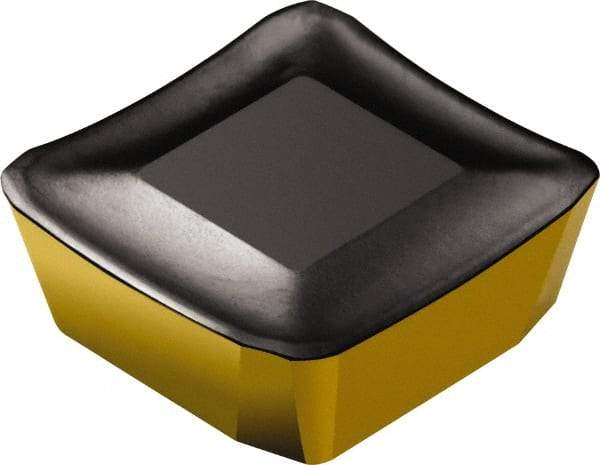

Sandvik Coromant - SMKR43 WH Grade 4230 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 4.75mm Thick, 1/2" Inscribed Circle
Item #: 52062452
Brand: Sandvik Coromant
Model #: 5751371
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SMKR |
| Insert Size | 43 |
| Material | Carbide |
| Manufacturer's Grade | 4230 |
| Coating | TiCN/Al2O3/TiN |
| Length (mm) | 10.20 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 4.75 |
| Thickness (Decimal Inch) | 0.1870 |
| Rake Angle | 8 |
| Rake | Positive |
| Coating Process | MTCVD |
| Included Angle | 0 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | WH |
| Maximum Depth of Cut (Decimal Inch) | 0.3543 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SPKR 12 04 ED R-WH 4230 |
