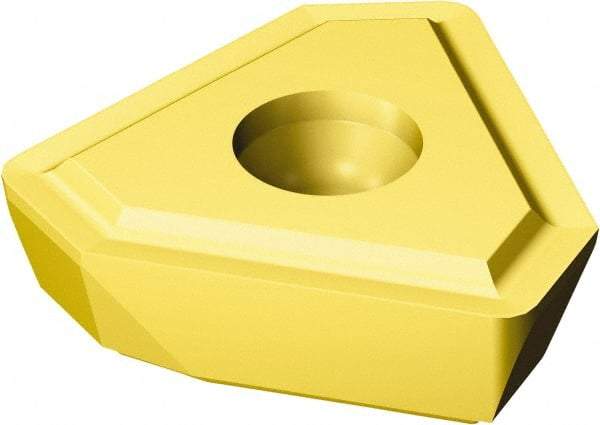

Sandvik Coromant - TPGX28 G Grade 1025 Carbide Indexable Drill Insert - TiAlN/TiN Finish, Triangle, 17mm Inscribed Circle
Item #: 52064912
Brand: Sandvik Coromant
Model #: 6332226
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Insert Style | TPGX |
| Insert Size | 28 |
| Material | Carbide |
| Manufacturer's Grade | 1025 |
| Inscribed Circle (mm) | 17.00 |
| Inscribed Circle (Decimal Inch) | 0.6693 |
| Thickness (mm) | 7.57 |
| Thickness (Decimal Inch) | 0.2980 |
| Corner Radius (mm) | 1.60 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Shape | Triangle |
| Width (Decimal Inch) | 0.6693 |
| Width (mm) | 17.00 |
| Length (mm) | 17.00 |
| Length (Decimal Inch) | 0.6693 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Relief Angle | 11 |
| Included Angle | 11 |
| Coating | TiAlN/TiN |
| Coating Process | PVD |
| Cutting Direction | Right Hand |
| Chipbreaker | G |
