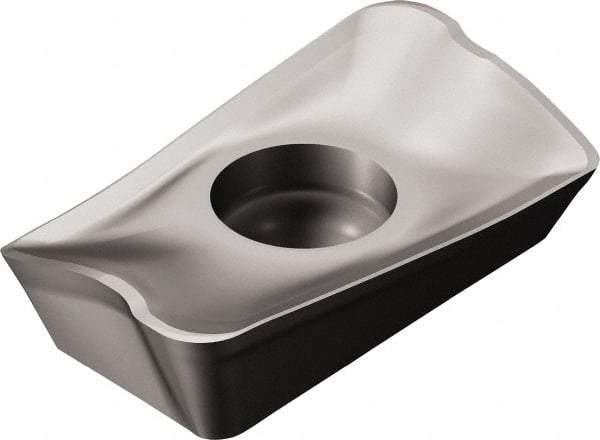

Sandvik Coromant - R39011T308 PL Grade 530 Cermet Milling Insert - Uncoated, 3.59mm Thick, 6.8mm Inscribed Circle, 0.8mm Corner Radius
Item #: 52070158
Brand: Sandvik Coromant
Model #: 5745666
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | R390 |
| Insert Size | 11T308 |
| Material | Cermet |
| Manufacturer's Grade | 530 |
| Coating | Uncoated |
| Width (mm) | 6.80 |
| Width (Decimal Inch) | 0.2677 |
| Length (mm) | 10.00 |
| Inscribed Circle (mm) | 6.80 |
| Thickness (mm) | 3.59 |
| Thickness (Decimal Inch) | 0.1413 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 2.80 |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Coating Process | Uncoated |
| Included Angle | 0 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | PL |
| Maximum Depth of Cut (mm) | 10.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | R390-11 T3 08E-PL 530 |
