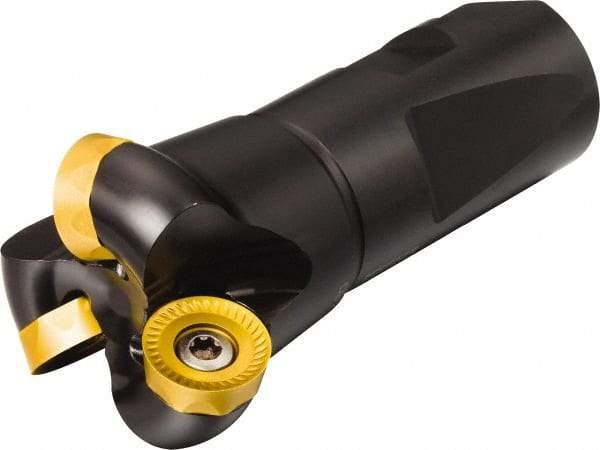

Sandvik Coromant - 2 Inserts, 5/8" Cut Diam, 1" Arbor Diam, 4.7498mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 132mm High, RCKT 09 T3 00 Insert Compatibility, Series CoroMill 200
Item #: 52071123
Brand: Sandvik Coromant
Model #: 5737641
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 15.88 |
| Cutting Diameter (Inch) | 5/8 |
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 0 |
| Overall Height (mm) | 132.00 |
| Overall Height (Decimal Inch) | 5.1969 |
| Insert Compatibility | RCKT 09 T3 00 |
| Series | CoroMill 200 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 4.75 |
| Maximum Depth of Cut (Decimal Inch) | 0.1870 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| Cutter Style | RA200 |
| Number of Flutes | 2 |
| Rake | Negative |
| Hub Diameter (mm) | 25.40 |
| Hub Diameter (Decimal Inch) | 1.0000 |
| Hub Diameter (Inch) | 1 |
| Maximum Body Diameter (Decimal Inch) | 0.6250 |
| Number of Adjustable Pockets | 0 |
| Maximum RPM | 37500 |
| Pitch | Close |
| Cutting Edge Length (Decimal Inch) | 0.1870 |
| ISO Number | RA200-016MN25-09M |
| Complete Insert Compatibility | RCKT 09 T3 00 |
| Toolholder Material | Steel |
