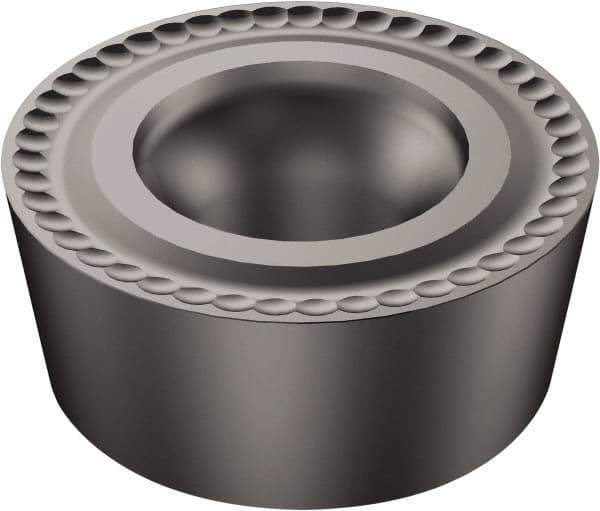

Sandvik Coromant - RCMT43 Grade H13A Carbide Turning Insert - Uncoated, Round, 1/2" Inscr Circle, 3/16" Thick
Item #: 52073889
Brand: Sandvik Coromant
Model #: 5740587
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 43 |
| Material | Carbide |
| Length (mm) | 4.76 |
| Length (Inch) | 3/16 |
| Length (Decimal Inch) | 0.1875 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Insert Length (Decimal Inch) | 0.1875 |
| OverallLength (mm) | 4.76 |
| Overall Length (Decimal Inch) | 0.1875 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | RCMT 12 04 00-M0 H13A |
| Relief Angle | 7 |
| Insert Holding Method | Screw |
| Shape | Round |
