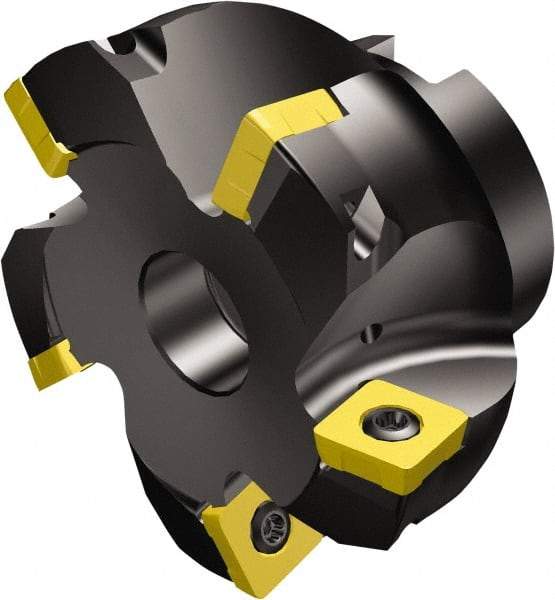

Sandvik Coromant - 6 Inserts, 77.6mm Cut Diam, 1-1/2" Arbor Diam, 2mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 10° Lead Angle, 59.9948mm High, R210-140512M Insert Compatibility, Through Coolant, Series CoroMill 210
Item #: 52084217
Brand: Sandvik Coromant
Model #: 5739888
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 77.60 |
| Cutting Diameter (Decimal Inch) | 3.0551 |
| Arbor Hole Diameter (mm) | 38.10 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 10 |
| Overall Height (mm) | 59.99 |
| Overall Height (Decimal Inch) | 2.3620 |
| Insert Compatibility | R210-140512M |
| Series | CoroMill 210 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | RA210 |
| Number of Flutes | 6 |
| Rake | Positive (Axial) |
| Hub Diameter (mm) | 38.10 |
| Hub Diameter (Decimal Inch) | 1.5000 |
| Hub Diameter (Inch) | 1-1/2 |
| Keyway Width (mm) | 16.08 |
| Keyway Width (Decimal Inch) | 0.6331 |
| Maximum Body Diameter (Decimal Inch) | 3.0551 |
| Number of Adjustable Pockets | 0 |
| Maximum RPM | 13300 |
| Pitch | Close |
| Cutting Edge Length (Decimal Inch) | 0.0787 |
| ISO Number | RA210-102R38-14M |
| Complete Insert Compatibility | R210-140512M- |
| Toolholder Material | Steel |
