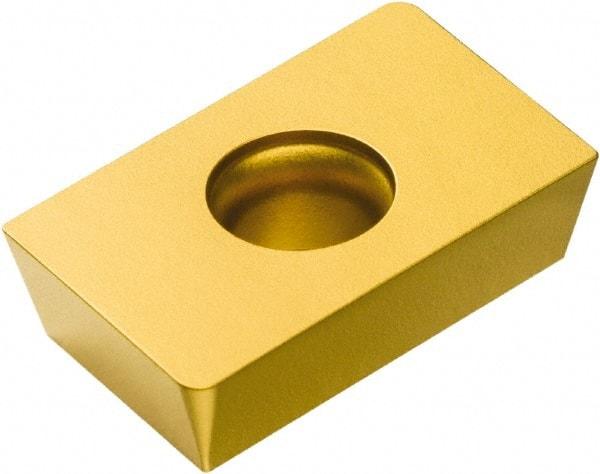

Sandvik Coromant - R216.207T3 Grade 235 Carbide Milling Insert - TiCN/TiN Finish, 3.96mm Thick, 0.374" Inscribed Circle
Item #: 52084308
Brand: Sandvik Coromant
Model #: 5742828
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R216.2 |
| Insert Size | 07T3 |
| Material | Carbide |
| Manufacturer's Grade | 235 |
| Coating | TiCN/TiN |
| Length (mm) | 7.60 |
| Inscribed Circle (Decimal Inch) | 0.3740 |
| Thickness (mm) | 3.96 |
| Thickness (Decimal Inch) | 0.1560 |
| Coating Process | CVD |
| Included Angle | 0 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | R216.2-07 T3 235 |
