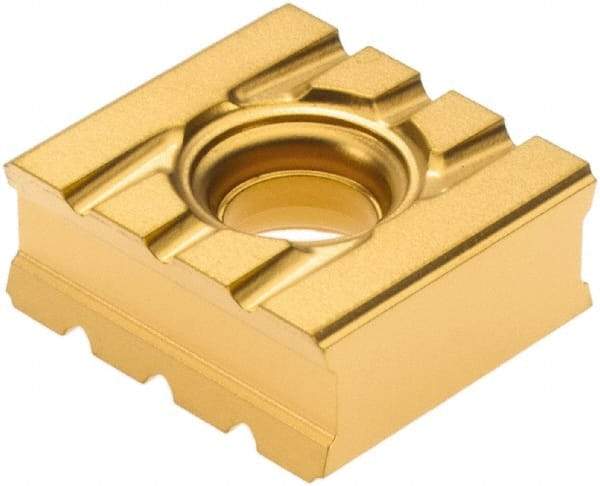

Sandvik Coromant - 215.31211-1-11 Grade 235 Carbide Milling Insert - TiCN/TiN Finish, 5.2mm Thick, 1/2" Inscribed Circle
Item #: 52084662
Brand: Sandvik Coromant
Model #: 5757660
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 215.3 |
| Insert Size | 1211-1-11 |
| Material | Carbide |
| Manufacturer's Grade | 235 |
| Coating | TiCN/TiN |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 5.20 |
| Thickness (Decimal Inch) | 0.2047 |
| Coating Process | CVD |
| Included Angle | 0 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 215.3-1211-1-11 235 |
