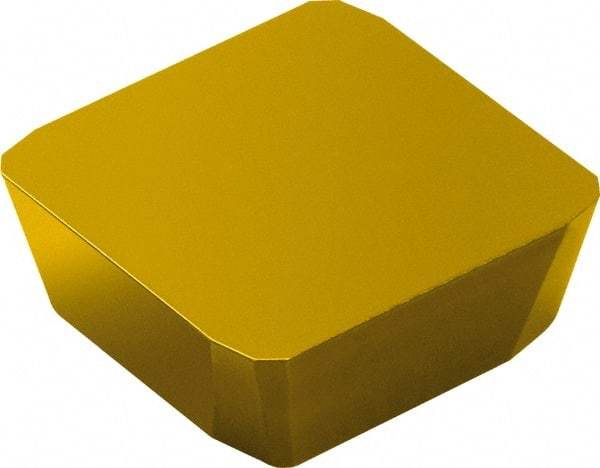

Sandvik Coromant - SMK43 Grade 235 Carbide Milling Insert - TiCN/TiN Finish, 3/16" Thick, 1/2" Inscribed Circle, 0.85mm Corner Radius
Item #: 52084738
Brand: Sandvik Coromant
Model #: 5751240
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SMK |
| Insert Size | 43 |
| Material | Carbide |
| Manufacturer's Grade | 235 |
| Coating | TiCN/TiN |
| Length (mm) | 10.30 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (mm) | 4.76 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0335 |
| Corner Radius (mm) | 0.85 |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3543 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SPKN 12 04 ED R 235 |
