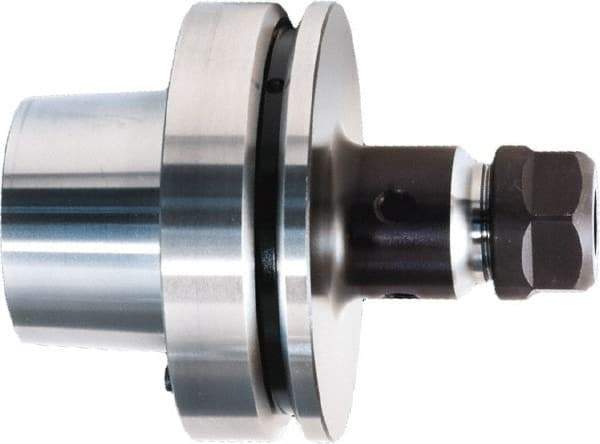

HAIMER - 1.5mm to 13mm Capacity, 3" Projection, HSK80F Hollow Taper, ER20 Collet Chuck - 0.0001" TIR, Through-Spindle & DIN Flange Coolant
Item #: 52175080
Brand: HAIMER
Model #: F80M.025.20
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER20 |
| Shank Type | Hollow Taper |
| Taper Size | HSK80F |
| Projection (Inch) | 3 |
| Projection (Decimal Inch) | 3.0000 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0590 |
| Minimum Collet Capacity (mm) | 1.50 |
| Maximum Collet Capacity (mm) | 13.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.5120 |
| Type | ER Collet |
| Nose Diameter (mm) | 40.00 |
| Nose Diameter (Decimal Inch) | 1.5740 |
| PSC Code | 5136 |
| Balanced to (RPM) | 33000 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0030 |
| Coolant Type | Through-Spindle & DIN Flange |
| Collet Nut Diameter (Decimal Inch) | 0.7874 |
| Collet Nut Diameter (mm) | 20.00 |
