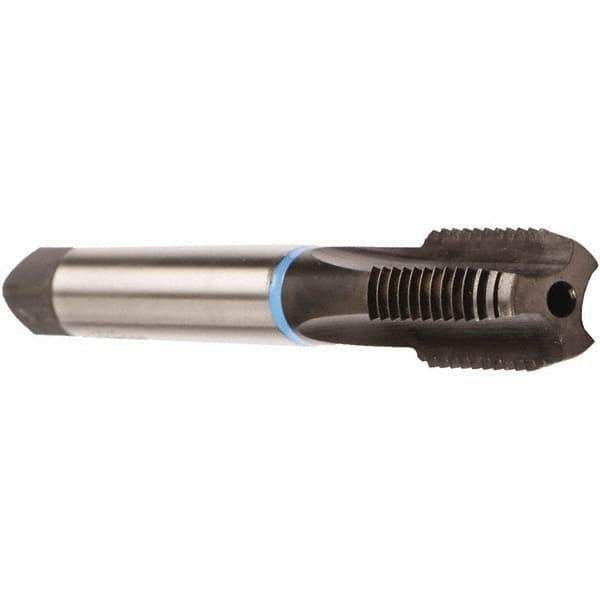

Emuge - M24x3.00 Metric Coarse 6HX 4 Flute Bright Finish Solid Carbide Straight Flute Machine Tap - Modified Bottoming, Right Hand Thread, 160mm OAL, 30mm Thread Length, Oversize, Through Coolant
Item #: 52300464
Brand: Emuge
Model #: C1950901.0124
Exact Tooling IR#: 04
Features and Benefits
Modified bottoming is similar to bottoming, but the chamfer is longer and has more teeth. They are used for threading blind holes and have 2 to 2-1/2 threads.
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Tap Type | Machine Tap |
| Thread Size (mm) | M24x3.00 |
| Class of Fit | 6HX |
| Number of Flutes | 4 |
| Chamfer | Modified Bottoming |
| Material | Solid Carbide |
| Finish/Coating | Bright |
| Thread Direction | Right Hand |
| Through Coolant | Through Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (Decimal Inch) | 6.29920 |
| Overall Length (mm) | 160.00 |
| Oversize | No |
| Series/List | Rekord A |
| Thread Length (Decimal Inch) | 1.1811 |
| Thread Length (mm) | 30.00 |
| Shank Diameter (Decimal Inch) | 0.7087 |
| Shank Diameter (mm) | 18.00 |
| Shank Length (Decimal Inch) | 5.12 |
| Shank Length (mm) | 130 |
| Square Size (Decimal Inch) | 0.5709 |
| Square Size (mm) | 14.50 |
| Material Application | Aluminum Alloys; Cast Iron; Copper Alloys; Graphite; Hardened Steel; Steel; Tungsten-Copper Alloys |
