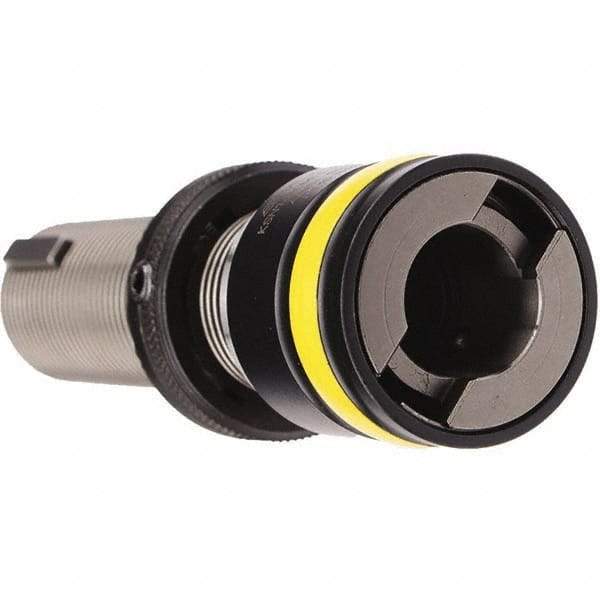

Emuge - 3/4-12 Threaded Shank Tension & Compression Tapping Chuck - M3 Min Tap Capacity, 1.9882" Projection, Size 1 Adapter, Quick Change
Item #: 52354529
Brand: Emuge
Model #: F3301M34
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Threaded shanks are designed with internal threads on the shank for machines that require a thread to adapt to the spindle. They are rigid and help to increase tool life.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Threaded Shank |
| Modular Connection Size | 3/4-12 |
| Minimum Tap Capacity (mm) | M3 |
| Projection (Decimal Inch) | 1.9882 |
| Quick Change | Yes |
| Adapter Size | 1 |
| Holder Series | KSN1 |
| Nose Diameter (Decimal Inch) | 1.4173 |
| Compression (Decimal Inch) | 0.1969 |
| Overall Length (Decimal Inch) | 4.5669 |
| Through Coolant | No |
