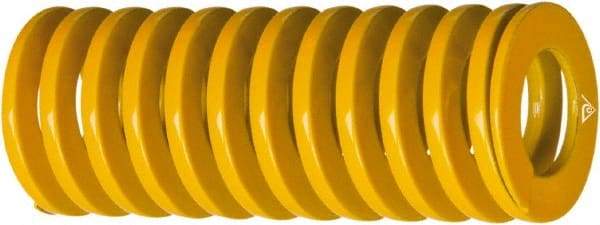

Associated Spring Raymond - 3/4" Hole Diam, 3/8" Rod Diam, 2" Free Length, Yellow Die Spring - 466 Lb Max Deflection, 0.5551" Max Deflection, Extra Heavy Duty, Chromium Alloy Steel
Item #: 52373438
Brand: Associated Spring Raymond
Model #: 306-408-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 3/4 |
| Rod Diameter (Inch) | 3/8 |
| Free Length (Inch) | 2 |
| Load Type | Extra Heavy-Duty |
| Color | Yellow |
| Maximum Deflection Load (N) | 2072.87 |
| Maximum Deflection Load (Lb.) | 466.00 |
| Maximum Deflection (mm) | 14.10 |
| Maximum Deflection (Decimal Inch) | 0.5551 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
