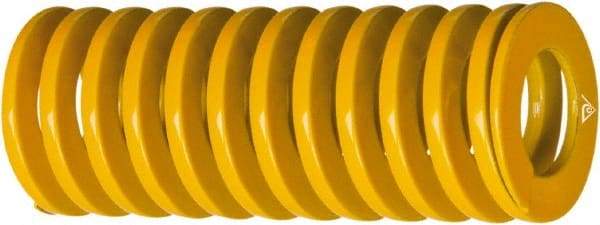

Associated Spring Raymond - 5/8" Hole Diam, 11/32" Rod Diam, 1-3/4" Free Length, Yellow Die Spring - 221 Lb Max Deflection, 0.5472" Max Deflection, Extra Heavy Duty, Chromium Alloy Steel
Item #: 52379955
Brand: Associated Spring Raymond
Model #: 306-307-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 5/8 |
| Rod Diameter (Inch) | 11/32 |
| Free Length (Inch) | 1-3/4 |
| Load Type | Extra Heavy-Duty |
| Color | Yellow |
| Maximum Deflection Load (N) | 983.06 |
| Maximum Deflection Load (Lb.) | 221.00 |
| Maximum Deflection (mm) | 13.90 |
| Maximum Deflection (Decimal Inch) | 0.5472 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
