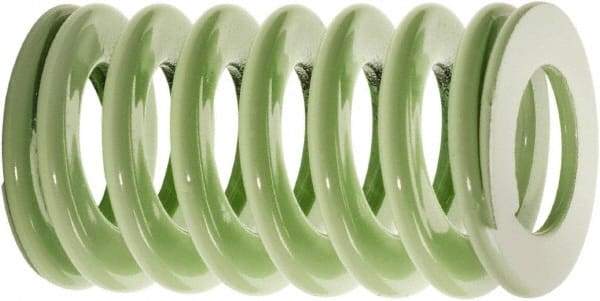

Associated Spring Raymond - 25mm Hole Diam, 12.5mm Rod Diam, 4" Free Length, Light Green Die Spring - 196 Lb Max Deflection, 2.5945" Max Deflection, Ultra Light Duty, Chromium Alloy Steel
Item #: 52383213
Brand: Associated Spring Raymond
Model #: 302-516-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (mm) | 25.00 |
| Rod Diameter (mm) | 12.50 |
| Free Length (Inch) | 4 |
| Load Type | Ultra Light-Duty |
| Color | Light Green |
| Maximum Deflection Load (N) | 871.85 |
| Maximum Deflection Load (Lb.) | 196.00 |
| Maximum Deflection (mm) | 65.90 |
| Maximum Deflection (Decimal Inch) | 2.5945 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
