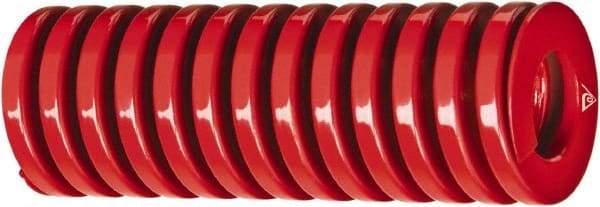

Associated Spring Raymond - 3/4" Hole Diam, 3/8" Rod Diam, 2-1/2" Free Length, Red Die Spring - 334 Lb Max Deflection, 0.7874" Max Deflection, Heavy Duty, Chromium Alloy Steel
Item #: 52383452
Brand: Associated Spring Raymond
Model #: 305-410-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 3/4 |
| Rod Diameter (Inch) | 3/8 |
| Free Length (Inch) | 2-1/2 |
| Load Type | Heavy-Duty |
| Color | Red |
| Maximum Deflection Load (N) | 1485.71 |
| Maximum Deflection Load (Lb.) | 334.00 |
| Maximum Deflection (mm) | 20.00 |
| Maximum Deflection (Decimal Inch) | 0.7874 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
