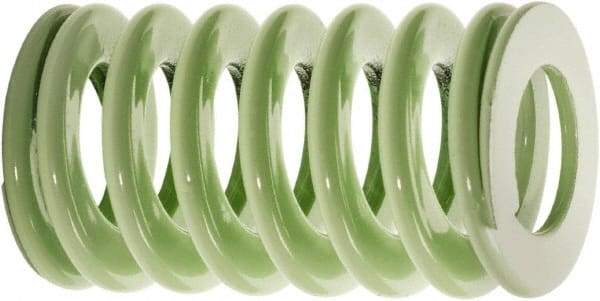

Associated Spring Raymond - 3/4" Hole Diam, 3/8" Rod Diam, 1-1/2" Free Length, Light Green Die Spring - 107 Lb Max Deflection, 1.0079" Max Deflection, Ultra Light Duty, Chromium Alloy Steel
Item #: 52386380
Brand: Associated Spring Raymond
Model #: 302-406-D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hole Diameter (Inch) | 3/4 |
| Rod Diameter (Inch) | 3/8 |
| Free Length (Inch) | 1-1/2 |
| Load Type | Ultra Light-Duty |
| Color | Light Green |
| Maximum Deflection Load (N) | 475.96 |
| Maximum Deflection Load (Lb.) | 107.00 |
| Maximum Deflection (mm) | 25.60 |
| Maximum Deflection (Decimal Inch) | 1.0079 |
| Wire Shape | Trapezoidal |
| Material | Chromium Alloy Steel |
| ISO Number | 10243 |
