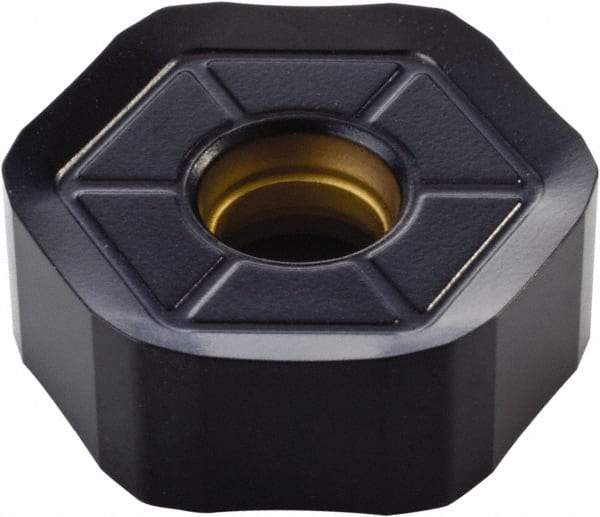

Kennametal - HNGJ535 LD Grade KCPM20 Carbide Milling Insert - TiN/MT/TiCN/Al2O3 Finish, 7/32" Thick, 5/8" Inscribed Circle, 3/64" Corner Radius
Item #: 52486743
Brand: Kennametal
Model #: 3873496
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HNGJ |
| Insert Size | 535 |
| Material | Carbide |
| Manufacturer's Grade | KCPM20 |
| Coating | TiN/MT/TiCN/Al2O3 |
| Inscribed Circle (Inch) | 5/8 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (Inch) | 7/32 |
| Thickness (Decimal Inch) | 0.2188 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Corner Radius (mm) | 1.19 |
| Hole Diameter (mm) | 5.00 |
| Hole Diameter (Decimal Inch) | 0.1970 |
| Relief Angle | 0.000 |
| Rake Angle | 15 |
| Rake | Positive |
| Coating Process | CVD |
| Included Angle | 120 |
| Shape | Hexagon |
| Insert Hand | Neutral |
| Chipbreaker | LD |
| Cutting Edge Style | Honed |
| ISO Number | HNGJ0905ANENLD |
