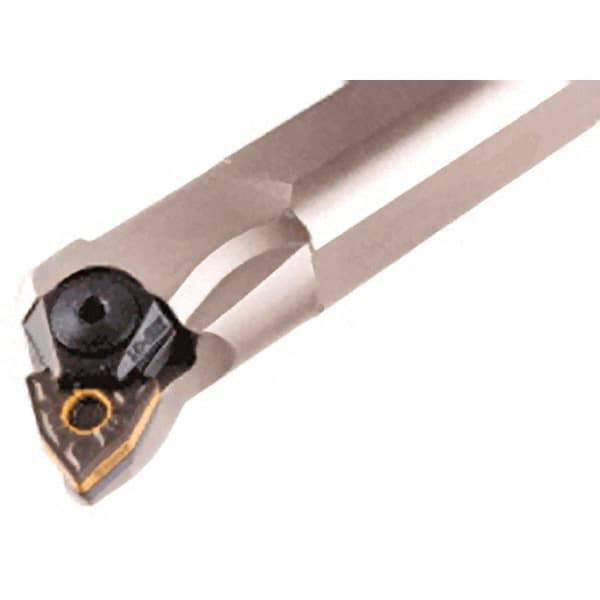

Iscar - 1.76" Min Bore Diam, 14" OAL, 1-1/2" Shank Diam, A-MWLN Indexable Boring Bar - 2.16" Max Bore Depth, WNM.. 43.. Insert, Wedge Holding Method
Item #: 52691813
Brand: Iscar
Model #: 3601344
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-MWLN |
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 1.7600 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 2.1600 |
| Overall Length (Decimal Inch) | 14.0000 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Compatibility | WNM.. 43.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Wedge |
| Rake | Negative |
| Center to Cutting Edge (Decimal Inch) | 0.8900 |
| Rake Angle | -10 |
| Complete Insert Compatibility | WNMA 432; WNMA 432-WG; WNMA 433; WNMA 434; WNMG 431-GN; WNMG 431-NF; WNMG 431-PP; WNMG 431-TF; WNMG 432-GN; WNMG 432-NF; WNMG 432-PP; WNMG 432-TF; WNMG 433-GN; WNMG 433-NF; WNMG 433-PP; WNMG 433-TF; WNMG 434-GN |
| Toolholder Material | Steel |
