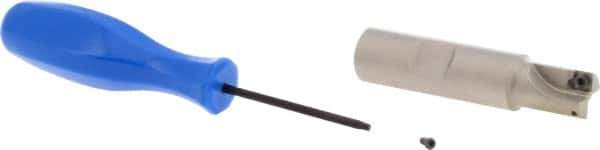

Iscar - 9/16" Cut Diam, 0.22" Max Depth of Cut, 5/8" Shank Diam, 2-3/4" OAL, Indexable Square Shoulder End Mill - Weldon Shank, 90° Lead Angle, Series Heliquad
Item #: 52708039
Brand: Iscar
Model #: 3110406
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.5620 |
| Cutting Diameter (Inch) | 9/16 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length/Projection (Decimal Inch) | 2.7500 |
| Lead Angle | 90 |
| Series | Heliquad |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.2200 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 0.8700 |
| Weldon Flat | Yes |
| Shank Length (Decimal Inch) | 1.8800 |
