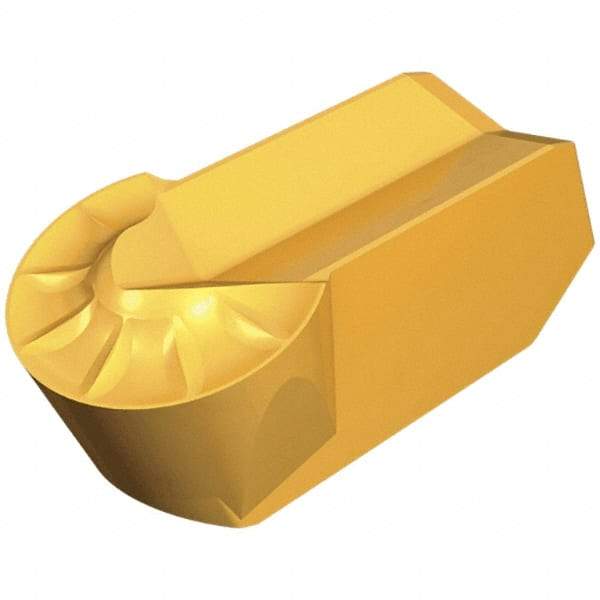

Iscar - 315GIMY Grade IC20N, 3mm Cutting Width Cermet Grooving Insert - 1.5mm Max Depth of Cut, Neutral, 1.5mm Corner Radius, Uncoated
Item #: 52715554
Brand: Iscar
Model #: 6401990
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | GIMY |
| Insert Size | 315 |
| Material | Cermet |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Manufacturer's Grade | IC20N |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Turning |
| Corner Radius (mm) | 1.50 |
| Corner Radius (Decimal Inch) | 0.0591 |
| Overall Length (mm) | 15.30 |
| Overall Length (Decimal Inch) | 0.6024 |
| Series | Cut Grip |
| Overall Width (mm) | 3.00 |
| Overall Width (Decimal Inch) | 0.1181 |
