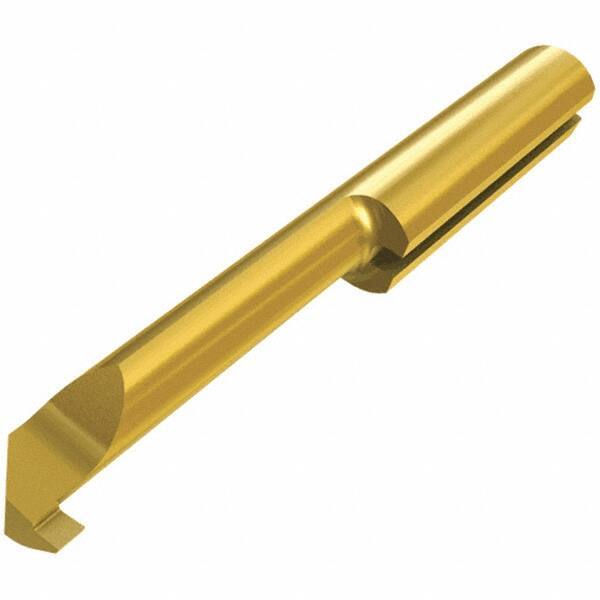

Iscar - 5mm Min Bore Diam, 0.748" Max Bore Depth, 5mm Shank Diam, Boring Bar - Left Hand Cut, Solid Carbide, TiCN/TiN Finish
Item #: 52726940
Brand: Iscar
Model #: 6402353
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, nonferrous metals and other tough to machine materials.
Boring bars are used to enlarge or finish the inside diameter of a workpiece.
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
| Product Specifications | |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.1969 |
| Minimum Bore Diameter (mm) | 5.00 |
| Maximum Bore Depth (Decimal Inch) | 0.7480 |
| Material | Solid Carbide |
| Boring Bar Type | Boring |
| Shank Diameter (Decimal Inch) | 0.1969 |
| Shank Diameter (mm) | 5.0000 |
| Overall Length (Decimal Inch) | 1.3780 |
| Overall Length (mm) | 35.00 |
| Cutting Direction | Left Hand |
| Finish/Coating | TiCN/TiN |
| Manufacturer Grade | IC228 |
