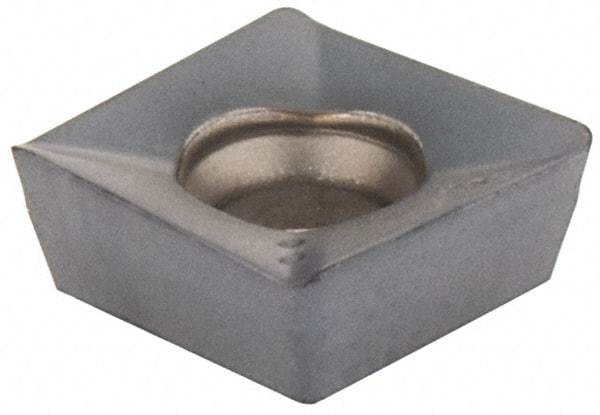

Iscar - SOMT060204 HQ Grade IC910 Carbide Milling Insert - AlTiN Finish, 0.1008" Thick, 0.2425" Inscribed Circle, 0.4mm Corner Radius
Item #: 52735834
Brand: Iscar
Model #: 5601933
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SOMT |
| Insert Size | 060204 |
| Material | Carbide |
| Material Grade | C2/C3/C6 |
| Manufacturer's Grade | IC910 |
| Coating | AlTiN |
| Width (Decimal Inch) | 0.2425 |
| Inscribed Circle (Decimal Inch) | 0.2425 |
| Thickness (Decimal Inch) | 0.1008 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Corner Radius (mm) | 0.40 |
| Coating Process | PVD |
| Included Angle | 90 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | HQ |
| ISO Number | SOMT 060204TR-HQ |
