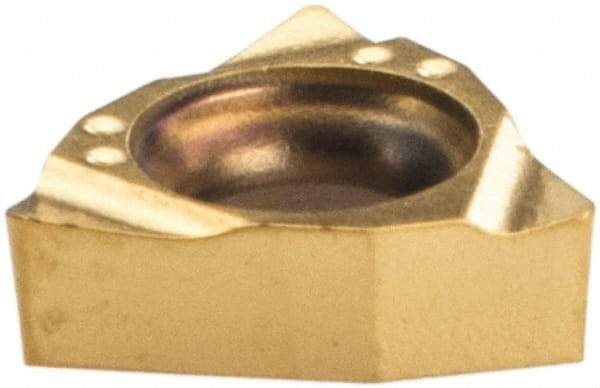

Iscar - WBMT520 Grade IC530N Cermet Turning Insert - TiCN/TiN Finish, 80° Trigon, 5/32" Inscr Circle, 1/16" Thick, 0.0079" Corner Radius
Item #: 52742293
Brand: Iscar
Model #: 5503924
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | WBMT |
| Insert Size | 520 |
| Material | Cermet |
| Length (mm) | 2.18 |
| Length (Decimal Inch) | 0.0858 |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Inscribed Circle (Inch) | 5/32 |
| Thickness (Inch) | 1/16 |
| Thickness (Decimal Inch) | 0.0625 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | IC530N |
| Coating | TiCN/TiN |
| Relief Angle | 5 |
| Coating Process | PVD |
| Included Angle | 80 |
| Cutting Direction | Right Hand |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0787 |
| Insert Holding Method | Screw |
| Shape | Trigon |
