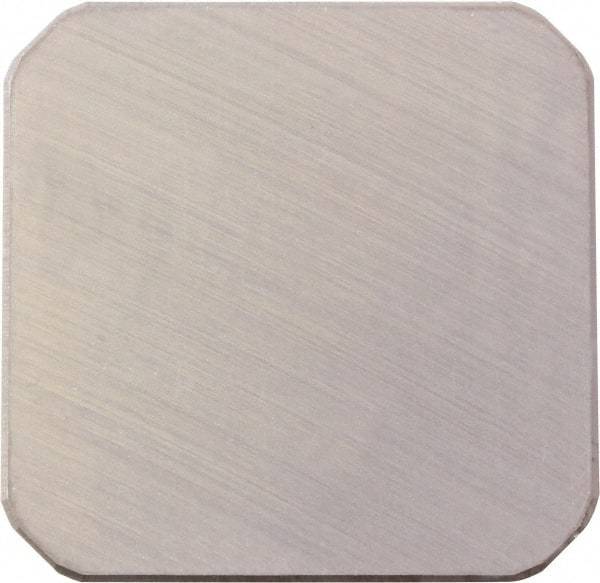

Kyocera - SEEN42 W Grade KW10 Carbide Milling Insert - WC/Co Finish, 1/8" Thick, 1/2" Inscribed Circle
Item #: 52852340
Brand: Kyocera
Model #: 8830596
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SEEN |
| Insert Size | 42 |
| Material | Carbide |
| Material Grade | K10 |
| Manufacturer's Grade | KW10 |
| Coating | WC/Co |
| Width (Inch) | 1/2 |
| Width (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Relief Angle | 25.000 |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | W |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | SEEN42AFFR-W |
