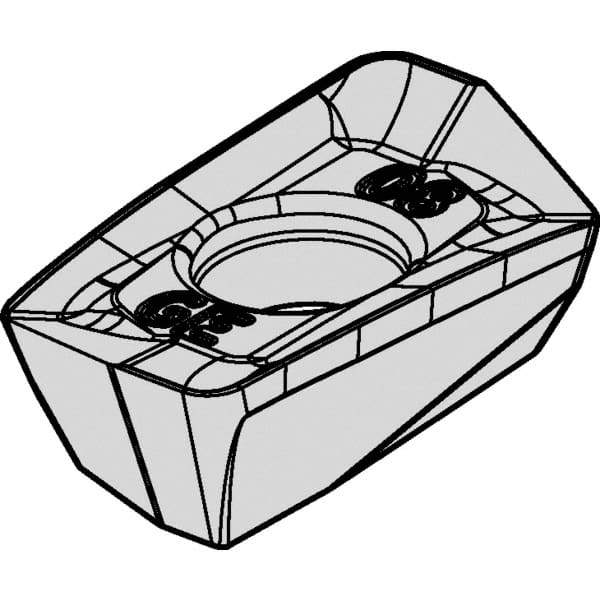

Kennametal - EP1008 HD Grade KCPM40 Carbide Milling Insert - TiAlN/AlCrN Finish, 0.148" Thick, 1/32" Corner Radius
Item #: 52859907
Brand: Kennametal
Model #: 5545214
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EP |
| Insert Size | 1008 |
| Material | Carbide |
| Manufacturer's Grade | KCPM40 |
| Coating | TiAlN/AlCrN |
| Width (Decimal Inch) | 0.2650 |
| Length (Decimal Inch) | 0.4740 |
| Thickness (Decimal Inch) | 0.1480 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.79 |
| Hole Diameter (mm) | 0.12 |
| Hole Diameter (Decimal Inch) | 15.0000 |
| Relief Angle | 0.790 |
| Rake Angle | 13 |
| Coating Process | PVD |
| Included Angle | 75 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | HD |
| ISO Number | EDPT10T308PDERHD |
